In the previous post, a Swagger file was created to provide clearer documentation. At this stage, the focus is on designing a product structure to outline the project. The main objective is to implement CRUD functionality in the admin panel and define the required Golang structures.

In this article, we’ll walk through a real-world example of how to structure a Go web application using layered architecture, and solve a common but critical problem: showing different data to different users — like Admins vs. Clients — without compromising security or maintainability.

🎯 The Problem

Imagine you’re building an e-commerce backend with two types of users:

  • Admins: Need full access to product details (price, cost, inventory, creation date).
  • Clients: Should only see public info (name, ID, selling price).

How do you:

  1. Structure your code cleanly?
  2. Prevent sensitive data from leaking to clients?
  3. Avoid code duplication and tight coupling?

Let’s explore the journey from a basic handler-based app to a clean, layered, and secure Go API.

🏗️ Step 1: Start with Layered Architecture

A clean Go project should separate concerns into distinct layers:

go
internal/├── model/       → Data structures (e.g., Product)├── repository/  → Data access (DB,
in-memory store)├── service/     → Business logic├── controller/  → HTTP handlers└── dto/         →
Data Transfer Objects (for API responses)

This follows the Hexagonal or Clean Architecture principles, where:

  • Lower layers don’t depend on higher ones.
  • The domain model (Product) is the single source of truth.

❌ Common Mistake: Defining Product in Multiple Layers

A tempting but dangerous shortcut is to define Product separately in service and repository:

go
// ❌ In service/product.gotype Product struct {    ID    string    Name  string    Price float64}//
❌ In repository/product.gotype Product struct {    ID    string    Name  string    Price float64}

Even if they look identical, Go treats them as completely different types.

💥 Consequences:

  • You can’t pass repository.Product to service.Product directly.
  • Manual mapping is required → boilerplate code.
  • If you add a field (e.g., Category), you must update both structs.
  • Risk of inconsistency and bugs.
  • Tight coupling between layers.

This violates the DRY principle and makes your app fragile.

✅ Solution: One Product in model/

Define Product once, in internal/model/product.go:

go
package modeltype Product struct {
    ID string
    `json:"id"`
    Name string
    `json:"name"`
    Price float64 `json:"price"`
    CostPrice float64 `json:"-"` // Internal field
    Inventory int `json:"-"` // Hidden by default
    CreatedAt time.Time `json:"created_at"`
}

Now, all layers are imported and used model.Product:

go
import "your-module/internal/model"func (s *ProductService) GetProduct(id string) (model.Product,
error) {
    ...
}

✅ No duplication
✅ No mapping
✅ One change updates all layers

🔐 Step 2: Control What Data Is Exposed

Now comes the real challenge: admins see everything, but clients see only public fields.

You might be tempted to use JSON tags like json:"-" or conditionally omit fields — but that’s error-prone and hard to test.

✅ Best Practice: Use DTOs (Data Transfer Objects)

Create response-specific structs in internal/dto/product_dto.go:

go
package dtotype ClientProductResponse struct {
    ID string `json:"id"`
    Name string `json:"name"`
    Price float64 `json:"price"`
}
type AdminProductResponse struct {
    ID string
    `json:"id"`
    Name string
    `json:"name"`
    Price float64 `json:"price"`
    CostPrice float64 `json:"cost_price"`
    Inventory int `json:"inventory"`
    CreatedAt time.Time `json:"created_at"`
}

And add helper functions to convert:

go
func ToClientProduct(p model.Product) ClientProductResponse {
    ...
}
func ToAdminProduct(p model.Product) AdminProductResponse {
    ...
}

This ensures:

  • The same domain logic is used everywhere.
  • The output is controlled per audience.
  • No risk of accidentally exposing CostPrice to clients.

🔄 Layered Flow: From DB to HTTP

Here’s how data flows through the system:

text
Database/In-Memory       ↓repository → Returns model.Product       ↓service    → Applies business
rules       ↓controller → Converts to dto.AdminProductResponse or dto.ClientProductResponse
↓HTTP Response (JSON)

Each layer has a clear responsibility:

  • Repository: Load/save data.
  • Service: Validate, compute, orchestrate.
  • Controller: Handle HTTP, choose DTO, send JSON.

🚀 Final Thoughts

Go’s simplicity can tempt us to skip structure — but as your app grows, good architecture saves time, reduces bugs, and improves security.

✅ Key Takeaways:

  1. Define domain models once — in internal/model.
  2. Never duplicate structs across layers.
  3. Use DTOs to control API output for different audiences.
  4. Keep the service layer clean — it should use model.Product, not define it.
  5. Let controllers handle presentation, not business logic.

✅ Goal: Modular, Microservice-Ready Structure

Combine Domain + Use Case

Instead of separating by role, use DTOs and controllers to handle role-based views — but keep the core in the domain.

Example: product The module supports both roles

text
internal/product/
├── model/
│
└── product.go              → Full domain model
├── dto/
│
├──
client_product.go       → Public fields
│
└── admin_product.go        → All fields
├── controller/
│

├── client_controller.go    → Returns ClientProduct
│
└── admin_controller.go     → Returns
AdminProduct
└── service/
└── product_service.go      → Business logic (used by both)

✅ Same service
✅ Same model
✅ Two DTOs + Two controllers

But one source of truth.

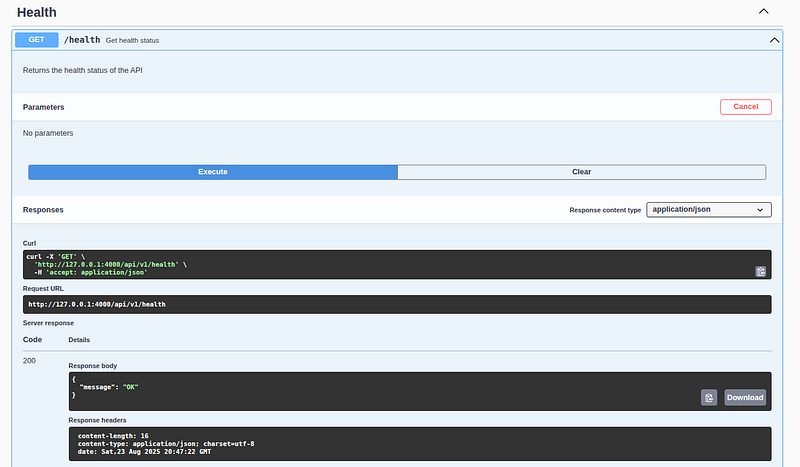

Health Controller

go-simple/
├── main.go
├── internal/
│ └── health/
│ └── controller/
│ └── health_controller.go

Github Codes

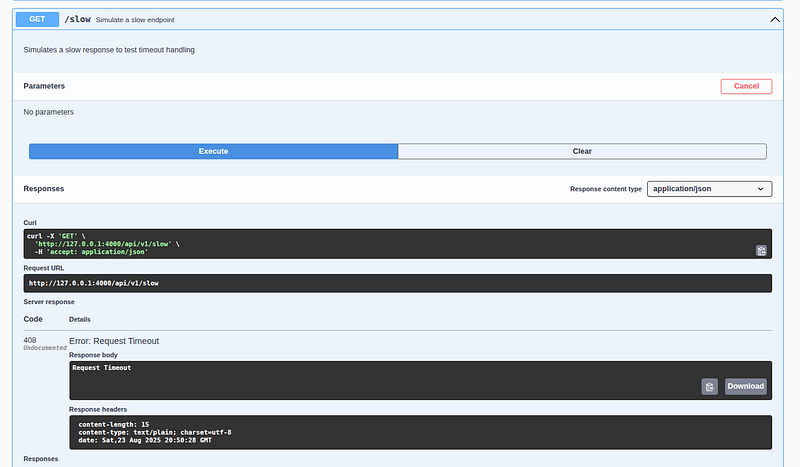

Swagger Examples
