Keycloak + OpenFGA: A Practical Integration Guide

Overview

Concern Tool Why Authentication (AuthN) Keycloak JWT issuance, user identity, realm roles, SSO Authorization (AuthZ) OpenFGA Relationship-based permission checks (ReBAC)

Rule: Keycloak answers “who are you?”. OpenFGA answers “what can you do?”. Neither tool does both jobs well. Do not conflate them.

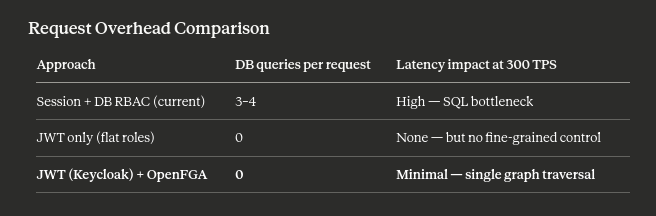

Performance baseline: The combined approach yields zero database queries for identity resolution and a single graph traversal per request for authorization — versus the typical 3–4 SQL queries per request in a database-backed RBAC system.

Core Concepts

Why not Keycloak alone?

Keycloak’s built-in authorization services (UMA, policy evaluation) work for simple role checks but degrade quickly when permissions are resource-scoped and hierarchical:

“User A can edit Project X because they are a participant” — this is a relationship, not a role.
“Org admin restricted User A to viewer on Project X” — this is a contextual override, not a role assignment.
At 300+ TPS, evaluating these relationships against a SQL database on every request causes measurable latency.

Keycloak + OpenFGA: A Practical Integration Guide

Why OpenFGA?

OpenFGA is built on Google Zanzibar (the permission system behind Google Drive). Its data model — relation tuples — maps directly to resource hierarchies:

text

user:alice   →  participant  →  project:alpha
project:alpha  →  owned_by   →  org:acme
org:acme     →  restricts    →  user:alice (viewer only)

A single Check call traverses all these relationships in one round trip. The result is ALLOW or DENY.

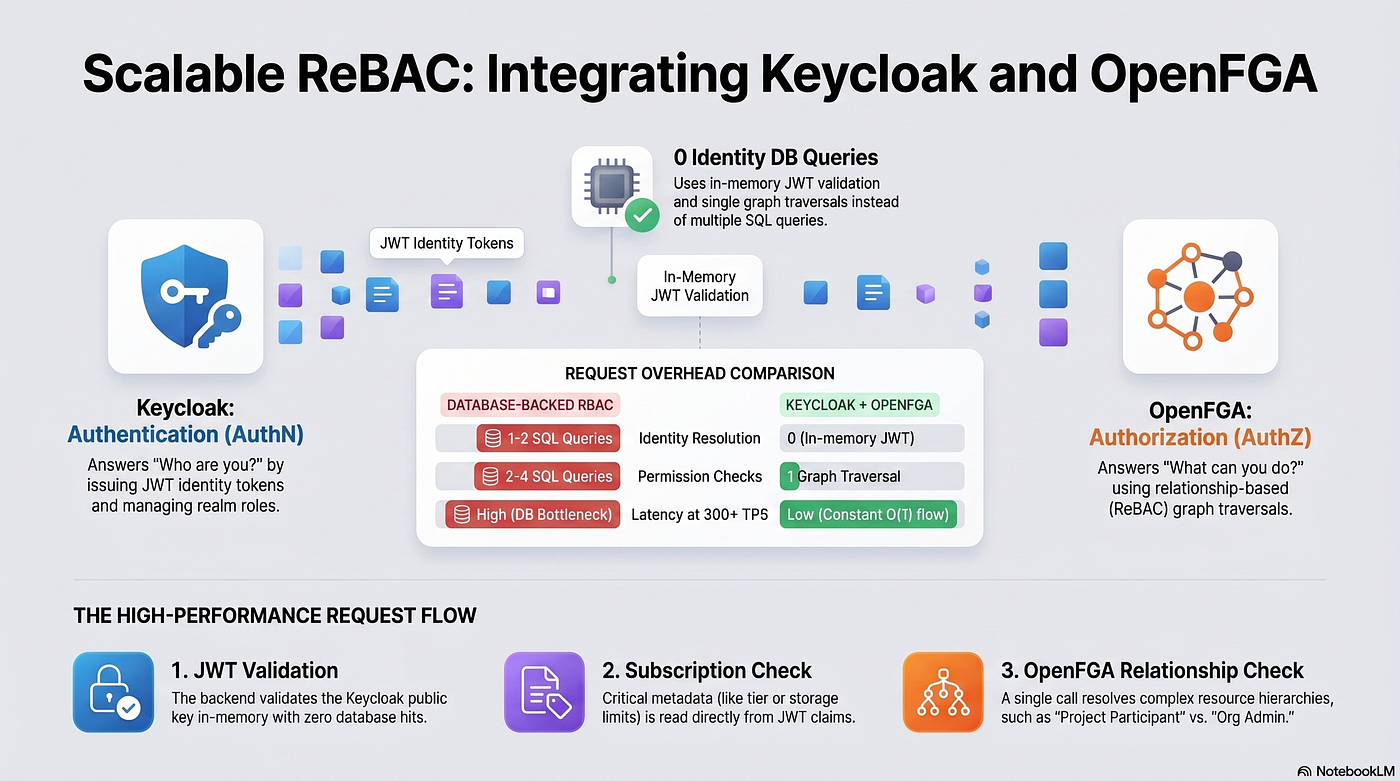

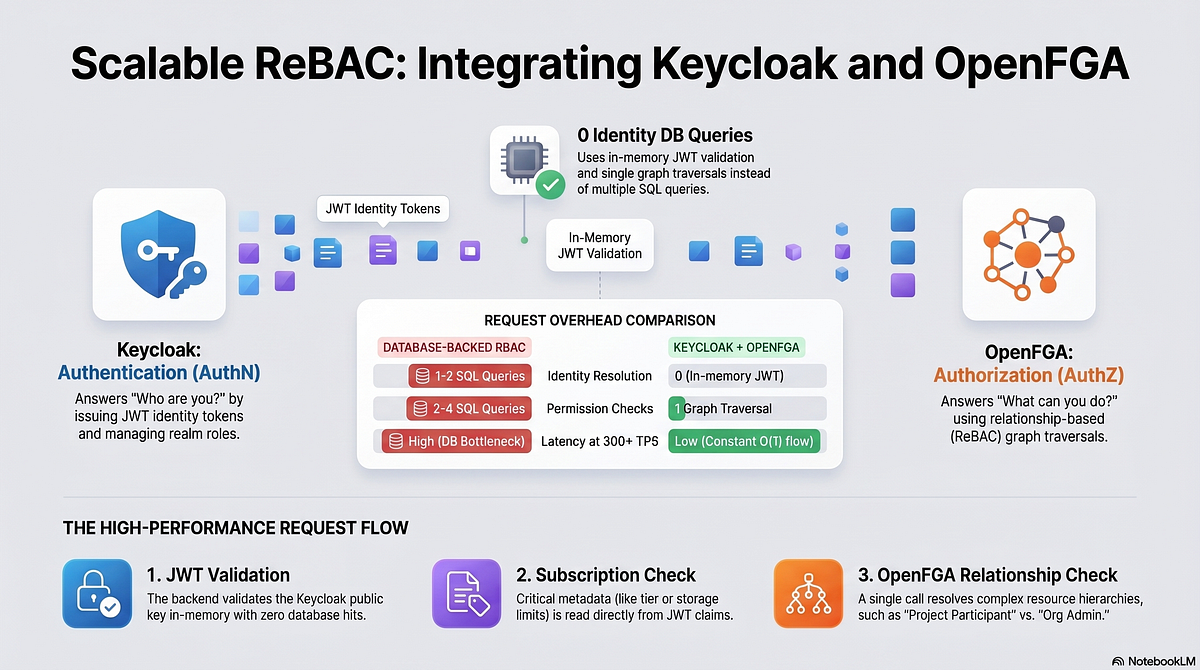

Data flow

http

POST /projects/:id/bids
        │
        ▼
[1] JWT validation        ← Keycloak public key (in-memory, 0 DB queries)
        │
        ▼
[2] Subscription check    ← Read from JWT claim (in-memory, 0 DB queries)
        │
        ▼
[3] OpenFGA.Check()       ← Single graph traversal
        │                    resolves project role AND org restrictions
        ▼
   Execute handler

Infrastructure Setup

docker-compose.yml

yaml

version: "3.9"

services:
  postgres:
    image: postgres:16
    environment:
      POSTGRES_USER: appuser
      POSTGRES_PASSWORD: apppassword
      POSTGRES_MULTIPLE_DATABASES: appdb,keycloak,openfga
    volumes:
      - pg_data:/var/lib/postgresql/data
    ports:
      - "5432:5432"

  keycloak:
    image: quay.io/keycloak/keycloak:24.0
    environment:
      KC_DB: postgres
      KC_DB_URL: jdbc:postgresql://postgres:5432/keycloak
      KC_DB_USERNAME: appuser
      KC_DB_PASSWORD: apppassword
      KEYCLOAK_ADMIN: admin
      KEYCLOAK_ADMIN_PASSWORD: changeme
      KC_HOSTNAME_STRICT: "false"
      KC_HTTP_ENABLED: "true"
    command: start-dev
    ports:
      - "8080:8080"
    depends_on:
      - postgres

  openfga:
    image: openfga/openfga:latest
    command: run
    environment:
      OPENFGA_DATASTORE_ENGINE: postgres
      OPENFGA_DATASTORE_URI: >
        postgres://appuser:apppassword@postgres:5432/openfga?sslmode=disable
      OPENFGA_AUTHN_METHOD: none   # use preshared key in production
    ports:
      - "8081:8081"   # HTTP API
      - "8082:8082"   # gRPC
      - "3000:3000"   # Playground UI
    depends_on:
      - postgres

volumes:
  pg_data:

Run: docker compose up -d

Keycloak Configuration

1. Create realm

bash

# Using kcadm CLI inside the container
docker exec -it <keycloak_container> /opt/keycloak/bin/kcadm.sh \
  config credentials \
  --server http://localhost:8080 \
  --realm master \
  --user admin --password changeme

docker exec -it <keycloak_container> /opt/keycloak/bin/kcadm.sh \
  create realms \
  -s realm=myapp \
  -s enabled=true

2. Create platform roles

bash

for ROLE in architect general-contractor property-owner consultant platform-admin; do
  docker exec -it <keycloak_container> /opt/keycloak/bin/kcadm.sh \
    create roles \
    -r myapp \
    -s name=$ROLE
done

3. Create backend client

bash

docker exec -it <keycloak_container> /opt/keycloak/bin/kcadm.sh \
  create clients \
  -r myapp \
  -s clientId=backend-api \
  -s enabled=true \
  -s "redirectUris=[\"http://localhost:3001/*\"]" \
  -s publicClient=false \
  -s serviceAccountsEnabled=true

4. Add custom JWT claims (Protocol Mappers)

In Keycloak Admin UI → Clients → backend-api → Client Scopes → Dedicated scopes → Add mapper → By configuration → User Attribute:

Mapper Token Claim Name User Attribute Claim JSON Type Subscription tier subscription_tier subscription_tier String Modules subscription_modules subscription_modules JSON Storage storage_gb storage_gb int

Set the attribute on each user after purchase via the Admin API:

bash

curl -X PUT http://localhost:8080/admin/realms/myapp/users/{userId} \
  -H "Authorization: Bearer $ADMIN_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "attributes": {
      "subscription_tier": ["pro"],
      "subscription_modules": ["[\"bidding\",\"material_selection\",\"procurement\"]"],
      "storage_gb": ["50"]
    }
  }'

Resulting JWT payload

json

{
  "sub": "a3f8c2d1-4e5b-6789-abcd-ef0123456789",
  "email": "user@example.com",
  "realm_access": {
    "roles": ["general-contractor"]
  },
  "subscription_tier": "pro",
  "subscription_modules": ["bidding", "material_selection", "procurement"],
  "storage_gb": 50,
  "iat": 1716580000,
  "exp": 1716583600
}

OpenFGA Configuration

1. Create a store

bash

curl -X POST http://localhost:8081/stores \
  -H "Content-Type: application/json" \
  -d '{"name": "myapp"}' \
  | jq '.id'
# Save this as FGA_STORE_ID

2. Write authorization model

cpp

curl -X POST http://localhost:8081/stores/$FGA_STORE_ID/authorization-models \
  -H "Content-Type: application/json" \
  -d '{
  "schema_version": "1.1",
  "type_definitions": [
    {
      "type": "user"
    },
    {
      "type": "organization",
      "relations": {
        "owner":  { "this": {} },
        "admin":  { "union": { "child": [{ "this": {} }, { "computedUserset": { "relation": "owner" } }] } },
        "manager":{ "union": { "child": [{ "this": {} }, { "computedUserset": { "relation": "admin" } }] } },
        "member": { "union": { "child": [{ "this": {} }, { "computedUserset": { "relation": "manager" } }] } }
      },
      "metadata": {
        "relations": {
          "owner":   { "directly_related_user_types": [{ "type": "user" }] },
          "admin":   { "directly_related_user_types": [{ "type": "user" }] },
          "manager": { "directly_related_user_types": [{ "type": "user" }] },
          "member":  { "directly_related_user_types": [{ "type": "user" }] }
        }
      }
    },
    {
      "type": "project",
      "relations": {
        "owner":       { "this": {} },
        "admin":       { "union": { "child": [{ "this": {} }, { "computedUserset": { "relation": "owner" } }] } },
        "participant": { "union": { "child": [{ "this": {} }, { "computedUserset": { "relation": "admin" } }] } },
        "viewer":      { "union": { "child": [{ "this": {} }, { "computedUserset": { "relation": "participant" } }] } },

        "can_view_bidding":    { "computedUserset": { "relation": "viewer" } },
        "can_create_bidding":  { "computedUserset": { "relation": "participant" } },
        "can_confirm_bidding": { "computedUserset": { "relation": "admin" } },

        "can_view_materials":    { "computedUserset": { "relation": "viewer" } },
        "can_select_materials":  { "computedUserset": { "relation": "participant" } },
        "can_approve_materials": { "computedUserset": { "relation": "admin" } },

        "can_upload_files":  { "computedUserset": { "relation": "participant" } },
        "can_delete_project":{ "computedUserset": { "relation": "owner" } }
      },
      "metadata": {
        "relations": {
          "owner":       { "directly_related_user_types": [{ "type": "user" }, { "type": "organization" }] },
          "admin":       { "directly_related_user_types": [{ "type": "user" }] },
          "participant": { "directly_related_user_types": [{ "type": "user" }] },
          "viewer":      { "directly_related_user_types": [{ "type": "user" }] }
        }
      }
    }
  ]
}'

3. Write relation tuples

Tuples are written by your application when domain events occur — not at request time.

bash

# User invited to project as participant
curl -X POST http://localhost:8081/stores/$FGA_STORE_ID/write \
  -H "Content-Type: application/json" \
  -d '{
    "writes": {
      "tuple_keys": [{
        "user": "user:alice",
        "relation": "participant",
        "object": "project:alpha"
      }]
    }
  }'

# Org admin restricts user to viewer (delete participant, write viewer)
curl -X POST http://localhost:8081/stores/$FGA_STORE_ID/write \
  -H "Content-Type: application/json" \
  -d '{
    "deletes": {
      "tuple_keys": [{
        "user": "user:alice",
        "relation": "participant",
        "object": "project:alpha"
      }]
    },
    "writes": {
      "tuple_keys": [{
        "user": "user:alice",
        "relation": "viewer",
        "object": "project:alpha"
      }]
    }
  }'

4. Test a check

cpp

curl -X POST http://localhost:8081/stores/$FGA_STORE_ID/check \
  -H "Content-Type: application/json" \
  -d '{
    "tuple_key": {
      "user": "user:alice",
      "relation": "can_create_bidding",
      "object": "project:alpha"
    }
  }'
# { "allowed": true }

NestJS Integration

Install dependencies

bash

npm install @openfga/sdk @nestjs/jwt jwks-rsa

Environment variables

dotenv

# .env
KEYCLOAK_JWKS_URI=http://localhost:8080/realms/myapp/protocol/openid-connect/certs
KEYCLOAK_ISSUER=http://localhost:8080/realms/myapp
FGA_API_URL=http://localhost:8081
FGA_STORE_ID=your-store-id
FGA_MODEL_ID=your-model-id   # optional; omit to use latest

FGA module

typescript

// fga.module.ts
import { Module, Global } from "@nestjs/common";
import { OpenFgaClient } from "@openfga/sdk";

@Global()
@Module({
  providers: [
    {
      provide: OpenFgaClient,
      useFactory: () =>
        new OpenFgaClient({
          apiUrl: process.env.FGA_API_URL,
          storeId: process.env.FGA_STORE_ID,
          authorizationModelId: process.env.FGA_MODEL_ID,
        }),
    },
  ],
  exports: [OpenFgaClient],
})
export class FgaModule {}

Decorators

typescript

// auth.decorators.ts
import { SetMetadata } from "@nestjs/common";

export interface FgaPermission {
  relation: string;
  objectType: string;
  objectParam: string;  // req.params key that holds the resource ID
}

export const RequireModule = (module: string) =>
  SetMetadata("required_module", module);

export const FgaCheck = (permission: FgaPermission) =>
  SetMetadata("fga_permission", permission);

Auth guard

typescript

// auth.guard.ts
import {
  Injectable, CanActivate, ExecutionContext,
  UnauthorizedException, ForbiddenException,
} from "@nestjs/common";
import { Reflector } from "@nestjs/core";
import { JwksClient } from "jwks-rsa";
import * as jwt from "jsonwebtoken";
import { OpenFgaClient } from "@openfga/sdk";
import { FgaPermission } from "./auth.decorators";

const jwksClient = new JwksClient({
  jwksUri: process.env.KEYCLOAK_JWKS_URI,
  cache: true,
  cacheMaxEntries: 10,
  cacheMaxAge: 600_000, // 10 min
});

@Injectable()
export class AuthGuard implements CanActivate {
  constructor(
    private readonly reflector: Reflector,
    private readonly fga: OpenFgaClient,
  ) {}

  async canActivate(context: ExecutionContext): Promise<boolean> {
    const req = context.switchToHttp().getRequest();

    // ── 1. Extract + verify JWT ─────────────────────────────────
    const token = req.headers.authorization?.replace("Bearer ", "");
    if (!token) throw new UnauthorizedException("Missing token");

    const claims = await this.verifyJwt(token);

    // ── 2. Subscription gate (in-memory, zero DB) ───────────────
    const requiredModule = this.reflector.get<string>(
      "required_module",
      context.getHandler(),
    );
    if (requiredModule) {
      const modules: string[] = claims.subscription_modules ?? [];
      if (!modules.includes(requiredModule)) {
        throw new ForbiddenException(
          `Your subscription does not include the '${requiredModule}' module`,
        );
      }
    }

    // ── 3. OpenFGA permission check ─────────────────────────────
    const permission = this.reflector.get<FgaPermission>(
      "fga_permission",
      context.getHandler(),
    );
    if (permission) {
      const resourceId = req.params[permission.objectParam];
      if (!resourceId) throw new ForbiddenException("Resource ID missing");

      const { allowed } = await this.fga.check({
        tuple_key: {
          user: `user:${claims.sub}`,
          relation: permission.relation,
          object: `${permission.objectType}:${resourceId}`,
        },
      });

      if (!allowed) throw new ForbiddenException("Access denied");
    }

    req.user = {
      id: claims.sub,
      email: claims.email,
      role: claims.realm_access?.roles?.[0],
      subscriptionTier: claims.subscription_tier,
    };

    return true;
  }

  private verifyJwt(token: string): Promise<any> {
    return new Promise((resolve, reject) => {
      const decoded = jwt.decode(token, { complete: true });
      if (!decoded?.header?.kid) return reject(new UnauthorizedException("Invalid token header"));

      jwksClient.getSigningKey(decoded.header.kid, (err, key) => {
        if (err) return reject(new UnauthorizedException("Key fetch failed"));
        jwt.verify(
          token,
          key.getPublicKey(),
          { issuer: process.env.KEYCLOAK_ISSUER },
          (verifyErr, payload) => {
            if (verifyErr) return reject(new UnauthorizedException("Token verification failed"));
            resolve(payload);
          },
        );
      });
    });
  }
}

Controller usage

typescript

// bidding.controller.ts
import { Controller, Post, Get, Param, UseGuards } from "@nestjs/common";
import { AuthGuard } from "./auth.guard";
import { RequireModule, FgaCheck } from "./auth.decorators";

@Controller("projects/:projectId/bidding")
@UseGuards(AuthGuard)
export class BiddingController {

  // Requires: valid JWT + bidding module in subscription + participant on project
  @Post()
  @RequireModule("bidding")
  @FgaCheck({ relation: "can_create_bidding", objectType: "project", objectParam: "projectId" })
  async submitBid(@Param("projectId") projectId: string) {
    return this.biddingService.create(projectId);
  }

  // Requires: valid JWT + bidding module + viewer on project (minimum)
  @Get()
  @RequireModule("bidding")
  @FgaCheck({ relation: "can_view_bidding", objectType: "project", objectParam: "projectId" })
  async listBids(@Param("projectId") projectId: string) {
    return this.biddingService.findAll(projectId);
  }

  // Requires: valid JWT + admin on project
  @Post(":bidId/confirm")
  @FgaCheck({ relation: "can_confirm_bidding", objectType: "project", objectParam: "projectId" })
  async confirmBid(@Param("projectId") projectId: string) {
    return this.biddingService.confirm(projectId);
  }
}

Tuple sync service

Write tuples when domain events occur. Never at request time.

php

// permission-sync.service.ts
import { Injectable } from "@nestjs/common";
import { OpenFgaClient } from "@openfga/sdk";

type ProjectRole = "owner" | "admin" | "participant" | "viewer";

@Injectable()
export class PermissionSyncService {
  constructor(private readonly fga: OpenFgaClient) {}

  async grantProjectRole(userId: string, projectId: string, role: ProjectRole) {
    await this.fga.write({
      writes: {
        tuple_keys: [{
          user: `user:${userId}`,
          relation: role,
          object: `project:${projectId}`,
        }],
      },
    });
  }

  async changeProjectRole(
    userId: string,
    projectId: string,
    from: ProjectRole,
    to: ProjectRole,
  ) {
    await this.fga.write({
      deletes: { tuple_keys: [{ user: `user:${userId}`, relation: from, object: `project:${projectId}` }] },
      writes:  { tuple_keys: [{ user: `user:${userId}`, relation: to,   object: `project:${projectId}` }] },
    });
  }

  async revokeProjectAccess(userId: string, projectId: string, role: ProjectRole) {
    await this.fga.write({
      deletes: {
        tuple_keys: [{
          user: `user:${userId}`,
          relation: role,
          object: `project:${projectId}`,
        }],
      },
    });
  }

  async addOrgMember(userId: string, orgId: string, role: "admin" | "manager" | "member") {
    await this.fga.write({
      writes: {
        tuple_keys: [{
          user: `user:${userId}`,
          relation: role,
          object: `organization:${orgId}`,
        }],
      },
    });
  }
}

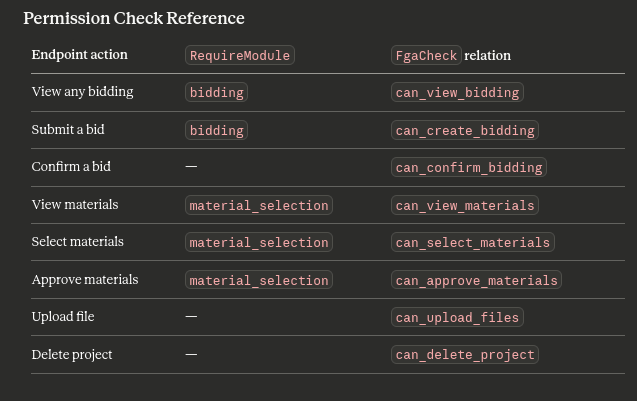

Permission Check Reference

Request Overhead Comparison

Production Checklist

typescript

Keycloak
  [ ] Switch from start-dev to start (production mode)
  [ ] Configure TLS termination (nginx/Caddy in front)
  [ ] Set KC_HOSTNAME to your public domain
  [ ] Enable brute force protection in realm settings
  [ ] Rotate admin credentials
  [ ] Configure SMTP for email verification

OpenFGA
  [ ] Set OPENFGA_AUTHN_METHOD=preshared and rotate key
  [ ] Enable TLS on the gRPC port
  [ ] Set up PostgreSQL connection pooling (PgBouncer)
  [ ] Add read replicas for FGA DB under high read load
  [ ] Monitor tuple write latency — spikes indicate missing indexes

Application
  [ ] Cache JWKS keys (jwks-rsa caches by default; verify TTL)
  [ ] Add OpenFGA circuit breaker (fail-closed on FGA timeout)
  [ ] Log all DENY decisions with user ID + resource + relation
  [ ] Write integration tests per permission scenario, not per endpoint

Limitations and Trade-offs

Keycloak

JVM-based — minimum ~512MB RAM. Use Authentik or Casdoor if memory is constrained.
UI-heavy to configure; scripting via kcadm or Terraform provider recommended for reproducibility.
Custom claim mappers require UI or API steps that are easy to miss.

OpenFGA

Does not handle authentication — you still need Keycloak (or equivalent) for JWT issuance.
Authorization model changes are additive-safe but deletions require care — removing a relation type that has live tuples causes silent failures.
No built-in audit log UI; implement your own tuple change log via event hooks.
ListObjects (fetch all resources a user can access) is expensive on large graphs — paginate and cache results.

Keycloak + OpenFGA: A Practical Integration Guide

Overview

Core Concepts

Why not Keycloak alone?

Why OpenFGA?

Data flow

Infrastructure Setup

Keycloak Configuration

1. Create realm

2. Create platform roles

3. Create backend client

4. Add custom JWT claims (Protocol Mappers)

Resulting JWT payload

OpenFGA Configuration

1. Create a store

2. Write authorization model

3. Write relation tuples

4. Test a check

NestJS Integration

Install dependencies

Environment variables

FGA module

Decorators

Auth guard

Controller usage

Tuple sync service

Permission Check Reference

Request Overhead Comparison

Production Checklist

Limitations and Trade-offs

Further Reading

Tags of this blog

Explore all tags
