Tunneling TCP Connections Over SSH Using socat and nc

The Problem

Sometimes you need to reach a service on a remote host that isn’t directly accessible from your machine, maybe it’s behind a firewall, on a private network segment, or only reachable through a jump host. In this post I’ll show a lightweight, dependency-free way to tunnel TCP traffic using tools you almost certainly already have: ssh, nc (netcat), and socat.

The Setup

We have three actors:

  • Local machine — your workstation
  • Jump host — an SSH-accessible server that can reach the target
  • Target service — a TCP service (e.g. a database, API, or metrics endpoint) running on a host only reachable from the jump host

The goal: make the target service available on a local port as if it were running on your own machine.

The Command

text
socat TCP-LISTEN:8990,fork,reuseaddr EXEC:"ssh user@jump-host nc target-host 9000"

Let’s break it down:

  • socat TCP-LISTEN:8990,fork,reuseaddr — listens on local port 8990. fork handles multiple connections concurrently; reuseaddr allows quick restarts without "address already in use" errors.
  • EXEC:"..." — for each incoming connection, socat spawns the given command and pipes the TCP stream through its stdin/stdout.
  • ssh user@jump-host — opens an SSH session to the jump host.
  • nc target-host 9000 — on the jump host, netcat connects to the target service and streams raw TCP.

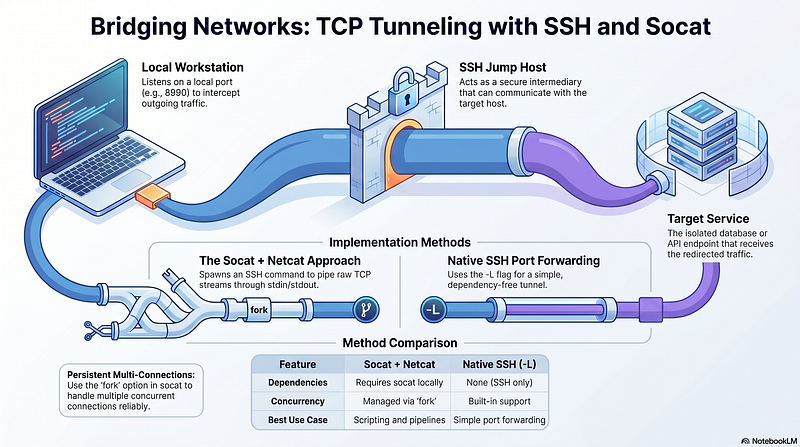

The result: localhost:8990 → SSH → jump host → netcat → target service. A full TCP tunnel with no extra software on any host.

SH Config for Cleaner Usage

Rather than hardcoding the jump host address every time, define it in ~/.ssh/config:

text
Host jump-tunnel    HostName <jump-host-ip>    User youruser    PasswordAuthentication yes
PubkeyAuthentication no    LocalForward 8990 <target-host>:9000

Now the socat command becomes:

text
socat TCP-LISTEN:8990,fork,reuseaddr EXEC:"ssh jump-tunnel nc <target-host> 9000"

Alternative: Pure SSH Port Forwarding

If you don’t need fork (i.e. only one consumer at a time), you can skip socat entirely and use SSH's built-in LocalForward:

bash
ssh -N -L 8990:<target-host>:9000 user@jump-host

Or with the config entry above, simply:

bash
ssh -N jump-tunnel

-N tells SSH not to execute a remote command — just hold the tunnel open.

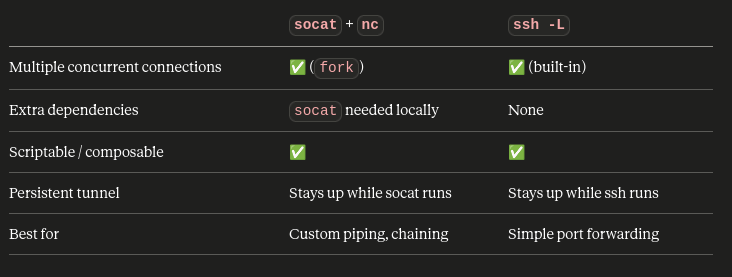

When to Use socat vs SSH -L

Tunneling TCP Connections Over SSH Using socat and nc

For most use cases, ssh -L is simpler. The socat approach shines when you need to compose it into a larger pipeline or script.

Conclusion

With just ssh, nc, and socat you can punch through network boundaries and expose remote TCP services locally — no VPN, no extra firewall rules, no installed agents. It's a handy trick to have in your toolkit when working across segmented networks.
