Real-Time Data Ingestion: Connecting Distributed Kafka to ClickHouse in Docker

Real-Time Data Ingestion: Connecting Distributed Kafka to ClickHouse in Docker

Building a high-throughput analytics pipeline requires a database that can ingest millions of rows per second and a message broker that can handle massive streams. ClickHouse and Kafka are the industry standard for this pair.

When running ClickHouse in a Docker environment while your Kafka cluster lives on a separate service (multi-node), there are specific architectural patterns and networking configurations you must follow.

🚨 HIRING: Tech Talent
💰 $50–$120/hr | 🔥 Multiple Roles

Frontend • Backend • Full Stack • Mobile • AI/ML • DevOps
👉 Apply Here

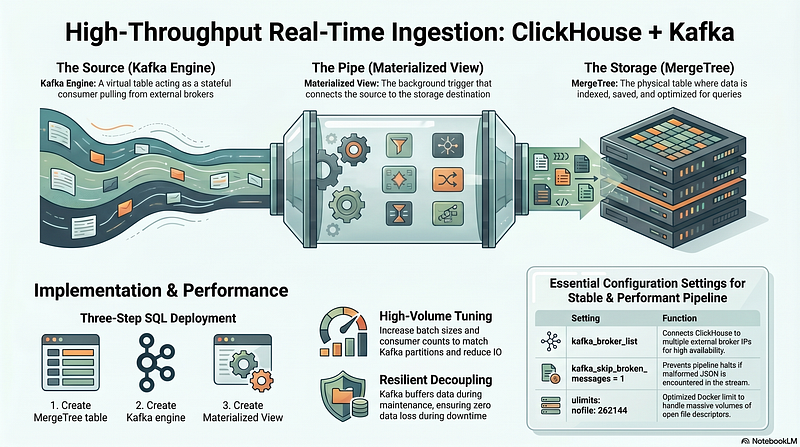

1. The Three-Tier Architecture

In ClickHouse, the `Kafka` engine does not store data on disk. It acts as a stateful consumer. To move data from Kafka to a permanent table, we use a three-part “Pipe” pattern:

1. The Source (Kafka Engine): A virtual table that pulls data from the broker.

2. The Storage (MergeTree Engine): The physical table where data is indexed and saved.

3. The Pipe (Materialized View): The background trigger that connects the two.

2. Infrastructure Setup (Docker Compose)

Even though Kafka is hosted elsewhere, your ClickHouse instance needs a stable Docker environment. Here is the configuration to run ClickHouse with optimized limits for high-volume ingestion.

services:
  clickhouse:
    image: clickhouse/clickhouse-server:24.8
    container_name: clickhouse
    ports:
      - "9000:9000"
  # Native protocol
      - "8123:8123"
  # HTTP protocol
    environment:
      - CLICKHOUSE_DB=default
      - CLICKHOUSE_USER=default
      - CLICKHOUSE_PASSWORD=pass
      - CLICKHOUSE_DEFAULT_ACCESS_MANAGEMENT=1
    volumes:
      - ./ch_data:/var/lib/clickhouse
    networks:
      - analytics_net
    ulimits:
      nofile:
        soft: 262144
        hard: 262144networks:
  analytics_net:
    driver: bridge

3. Implementing the Pipeline (SQL)

Step 1: Create the Storage Table

This is your final destination. We use the MergeTree engine, which is optimized for time-series and analytical queries.

CREATE TABLE events_destination (
    event_id UInt64,
    event_name String,
    event_time DateTime,
    payload String,
    ingested_at DateTime DEFAULT now()
)
ENGINE = MergeTree()
ORDER BY (event_time, event_id);

Step 2: Create the Kafka Engine

This table connects to your external brokers. Note the kafka_broker_list containing multiple IPs for high availability.

CREATE TABLE kafka_queue_stream (
    event_id UInt64,
    event_name String,
    event_time DateTime,
    payload String
)
ENGINE = Kafka
SETTINGS
    kafka_broker_list = '1.1.1.1:9092,1.1.1.2:9092',
    kafka_topic_list = 'your_topic_name',
    kafka_group_name = 'clickhouse_consumer_v1',
    kafka_format = 'JSONEachRow',
    kafka_skip_broken_messages = 1;

Step 3: Create the Materialized View

The Materialized View acts as the “glue.” As soon as this is created, ClickHouse begins consuming messages from Kafka.

CREATE MATERIALIZED VIEW kafka_ingest_mv TO events_destination ASSELECT     event_id,
event_name,     event_time,     payloadFROM kafka_queue_stream;

4. Connectivity & Performance Tips

External Networking

Since Kafka is on a separate service (IPs 10.x.x.x), ensure your Docker host can route to those IPs. You can verify the connection from inside the ClickHouse container:

docker exec -it clickhouse
curl -v 1.1.1.1:9092

Handling Broken Messages

In a production JSON stream, malformed data is inevitable. The setting kafka_skip_broken_messages = 1 prevents the entire pipeline from stopping if a producer sends invalid JSON.

Performance Tuning

For high-volume streams, consider these settings in your Kafka Table:

• kafka_num_consumers: Increase this to match the number of partitions in your Kafka topic.
• kafka_max_block_size: Increase this (e.g., to 1,000,000) to batch more messages before writing to disk, reducing IO overhead.

Conclusion

By decoupling the consumer (Kafka Engine) from the storage (MergeTree), you create a resilient architecture. If your database needs to go down for maintenance, Kafka will simply buffer the data until the Materialized View starts pulling again, ensuring zero data loss.
